1000 Membrane (16bar) (shifter)
浏览次数：
  • 1000 Membrane (16bar) (shifter)

技术规格 资料下载

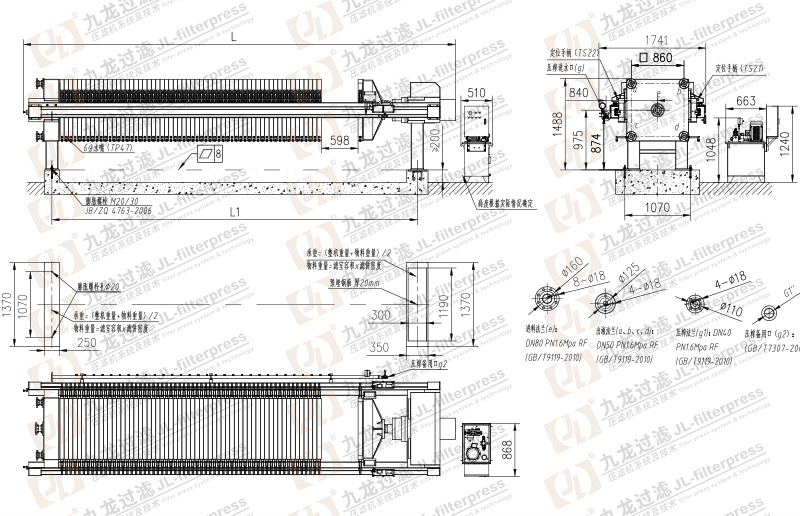

XG1000 Membrane (shifter) (16bar)
Filter pressure≤1.2MpaChamber plate size1000*1000*68Main oil pump motor power4kw
Membrane squeezing pressure≤1.6MpaDiaphragm plate size1000*1000*72Cylinder diameterD280mm
Cylinder pressure when plates closing≤20MpaFilter chamber depth before the squeeze40mmMaximum stroke of oil cylinder750mm



ModelFilter area (㎡)Number of diaphragm plates (pieces)Number of chamber plates (pieces)Number of filter chambers (pieces)Foot center distance L1(mm)Overall size L*W*H（mm）Filter chamber volume before squeezing (L)Total weight（kg）
XG100JYZ16Z2-32U321092031114192*1636*14886403321
XG100JYZ16Z2-40U4012112433954476*1636*14888003539
XG100JYZ16Z2-50U5015143038214902*1636*148810003866
XG100JYZ16Z2-60U6018173642475328*1636*148812004193
XG100JYZ16Z2-70U7021204246735754*1636*148814004520
XG100JYZ16Z2-80U8024234850996180*1636*148816004847
XG100JYZ16Z2-90U9027265455256606*1636*148818005174
XG100JYZ16Z2-100U10030296059517032*1636*148820005501
XG100JYZ16Z2-110U11033326663777458*1636*148822005828
XG100JYZ16Z2-120U12036357268037884*1636*148824006155
